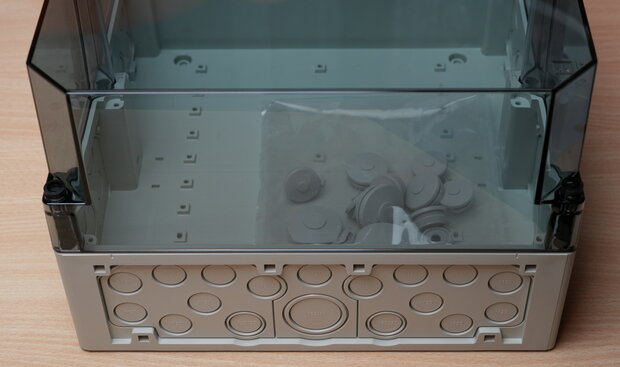

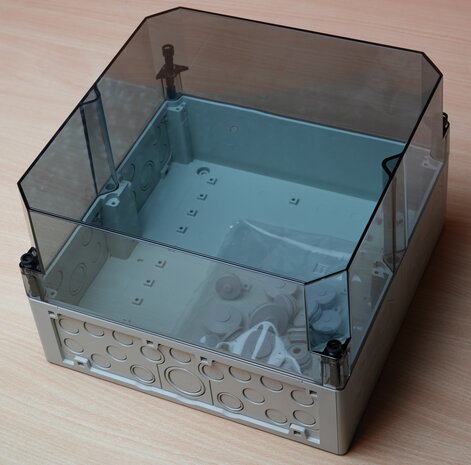

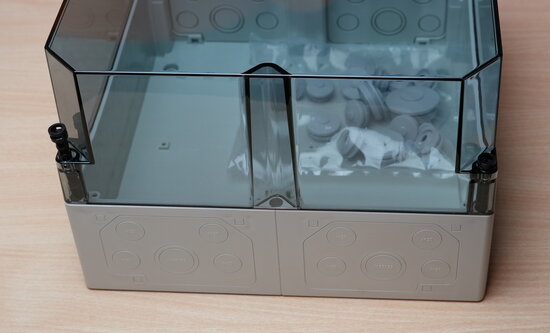

Spelsberg AKL 2th empty housing control cabinet 74690201

Spelberg AKL 2-th empty housing switch cabinet 74690201, Dimensions: 300 x 300 x 209 mm

empty housing, with protection class IP65, polystyrene, Ui=690V AC, Ui=1000V DC, mounting openings on the inside, for standard indoor installations

Accessories included:
10 double membrane inlets IP66 M20 sealing range 7 - 12 mm, 2 double membrane inlets IP66 M25 sealing range 9 - 16 mm, 2 double membrane inlets M32 sealing range 14 - 21 mm, 1 double membrane inlet IP66 M40 sealing range 19 - 28 mm

Electrical properties
Breakdown voltage AC 690 V
Breakdown voltage DC 1000 V
Protection class II
Protection degree IP65
UL Type Rating g.g.
Colour cover transparent
Weight 2.14 kg

Material properties
UV-resistant no
halogen-free yes
Flammability class according to UL94 HB
Glow wire resistance according to EN 60695-2-11 650 °C

Mechanical properties
Mounting type Wall/ceiling mounting
Impact resistance IK07
Sealable yes
Connectable yes
Type of top part Cover
Mounting mounting openings on the inside

Environmental conditions
Max. relative humidity 25°C 95 %
Max. relative humidity 40 °C 50 %
Ambient temperature min. -25 °C
Ambient temperature max. 40 °C
Ambient temperature 24 hours 35 °C
Installation location Inside

Material
Base material Polystyrene
Cover material Polycarbonate
Seal material Polyurethane
Cover screw material Polyamide, glass fibre reinforced

Condition: New in Box
Origin: Bankruptcy
EAN: 4013902071272
